RIM molded for impact resistance, RF transparency & low-batch economics. Density 1.03 g/cm³, HDT up to 110°C, wall thickness 2–12 mm, MOQ from 50 pcs.
Request Quote View Specs
Six reasons engineers choose our RIM-molded drone structures
Zero signal shadowing for GNSS, 5G, RC link & telemetry. No metallic mesh interference. Fly further, communicate clearer.
Unnotched impact 80 kJ/m². Ductile failure mode absorbs crash energy instead of splintering like FRP or carbon.
1.03 g/cm³ density — 40% lighter than steel equivalents. Every gram saved extends flight time.
Class-A finish out of the mold. Accepts PU/epoxy/UV topcoat directly. No gel coat required.
Complex curvatures, integrated ribs, mounting bosses, antenna cutouts — all molded in one shot.
Tooling 60–80% cheaper than injection. Viable from 50 pcs. No minimum run penalty.

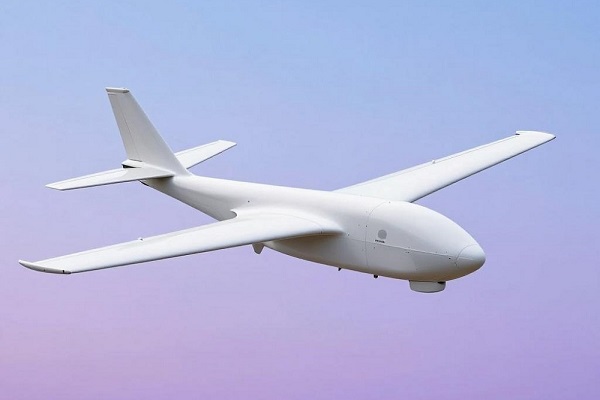

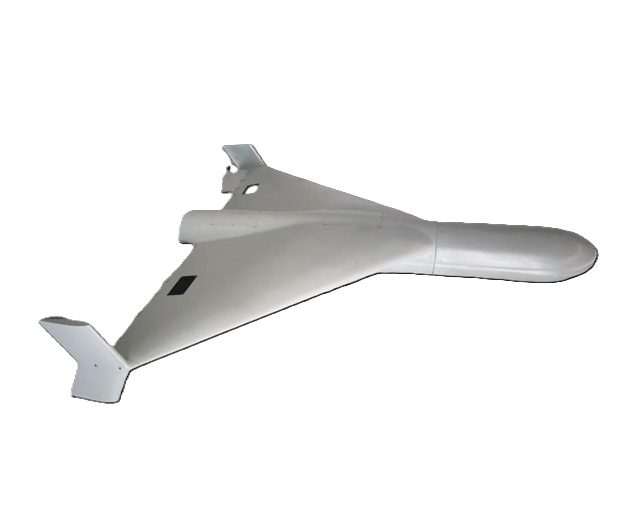

Real parts molded by HongFox — not 3D renderings
Verified data per GB/ISO test standards
| Property | Value | Standard |
|---|---|---|
| Density | 1.03 g/cm³ | GB/T 1033 |
| Tensile Strength | 51–60 MPa | GB/T 1040 |
| Flexural Modulus | 2.0–2.2 GPa | GB/T 9341 |
| Unnotched Impact | 25–80 kJ/m² | GB/T 1043 |
| HDT (1.8 MPa) | 95–110 °C | GB/T 1634 |
| Service Temp | −60 to 205 °C | — |
| Water Absorption | <0.1% (24h) | GB/T 1034 |
| Mold Pressure | <1 MPa | — |
| Cure Time | 30s–3min + 5–20min demold | — |
| Shrinkage | ~0.8% linear | — |
PDCPD offers the best impact-to-weight ratio among thermoset composites for non-primary-load UAV structures.
Send STEP/IGES files. We provide DFM feedback in 3 working days. Free design consultation.
Aluminum mold (prototype / <1k pcs) or steel mold (>5k pcs). Mold ownership belongs to client.
Primer + topcoat in any RAL/Pantone. Textured, matte, or glossy. Insert molding & threaded bushings available.
100% dimensional inspection. Batch report attached. Material certificate per shipment.
Transparent pricing tiers — no hidden fees
| Order Type | MOQ | Mold Type | Lead Time | Best For |
|---|---|---|---|---|
| CNC Prototype | 1–5 pcs | None (CNC from block) | 7–10 days | Design validation |
| Prototype Run | 50 pcs | Aluminum | 25–30 days | Testing & certification |
| Small Batch | 200–500 pcs | Aluminum | 25–35 days | Pilot production |
| Medium Batch | 500–2,000 pcs | Steel | 30–40 days | Serial production |
| High Volume | 2,000+ pcs | Steel (multi-cavity) | 35–45 days | Mass production |

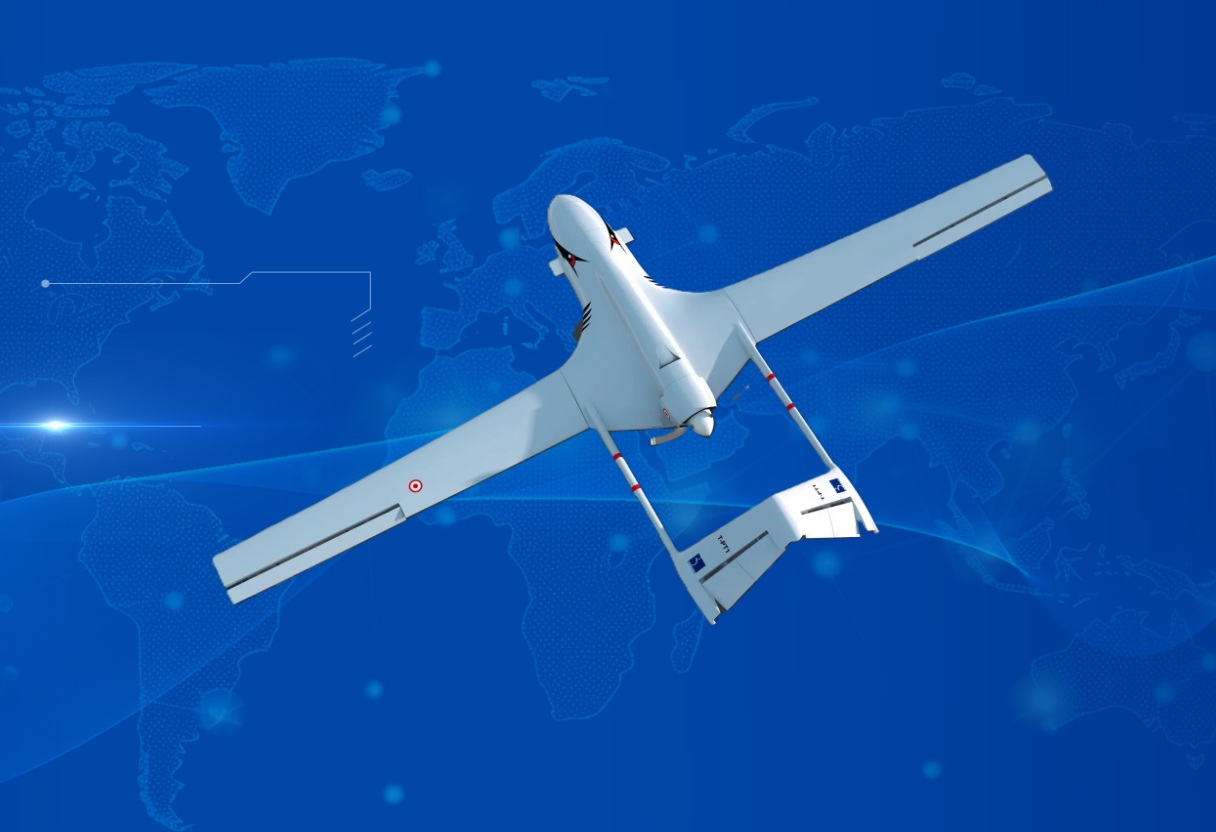

Where PDCPD UAV shells are flying today

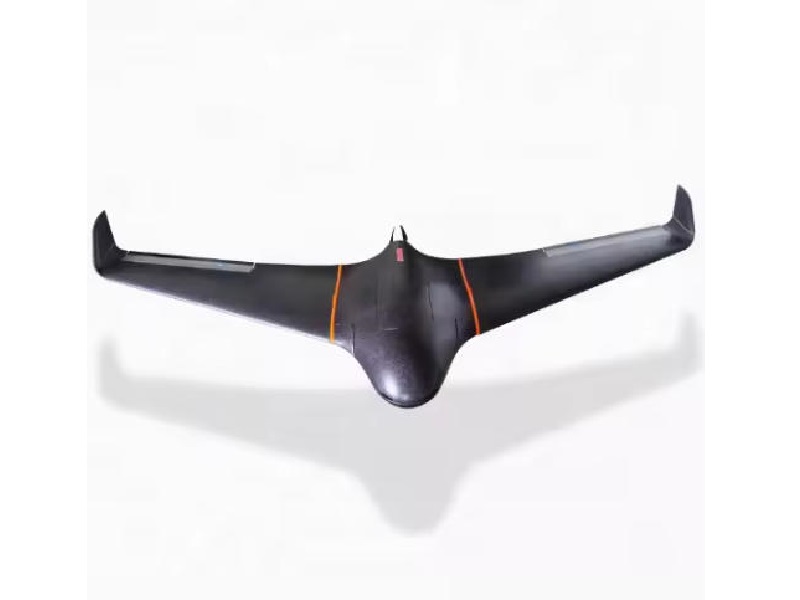

250mm to 1800mm span. Crash-tolerant shell replaces carbon fiber skins at 40% lower tooling cost.

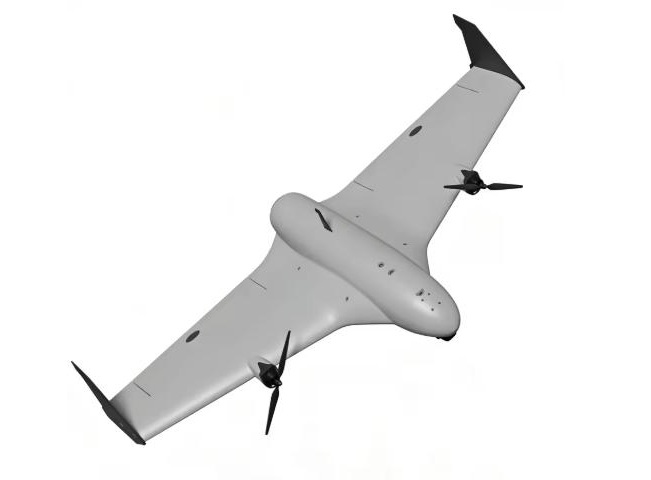

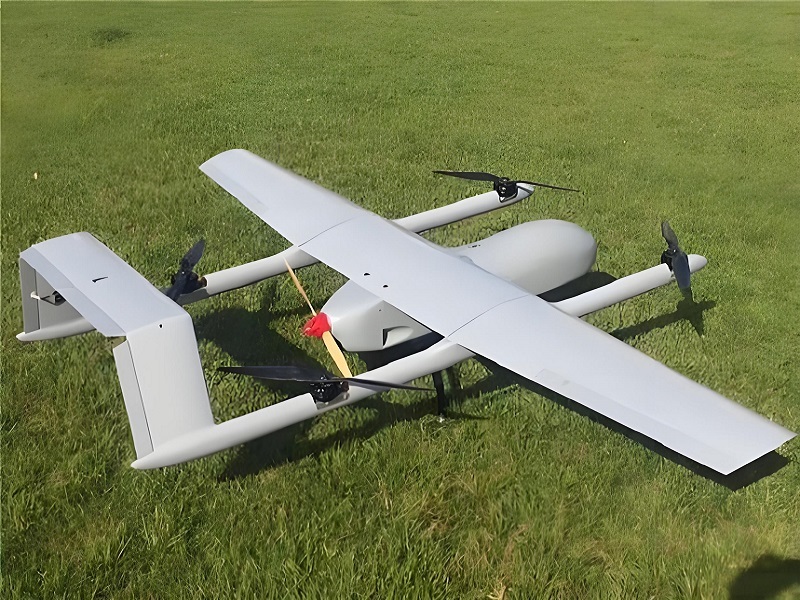

Central fuselage for hybrid fixed-wing. RF-transparent canopy allows internal GPS without signal loss.
Smooth Class-A surface, paint-ready. Integrated mount points for camera/gimbal hardware.

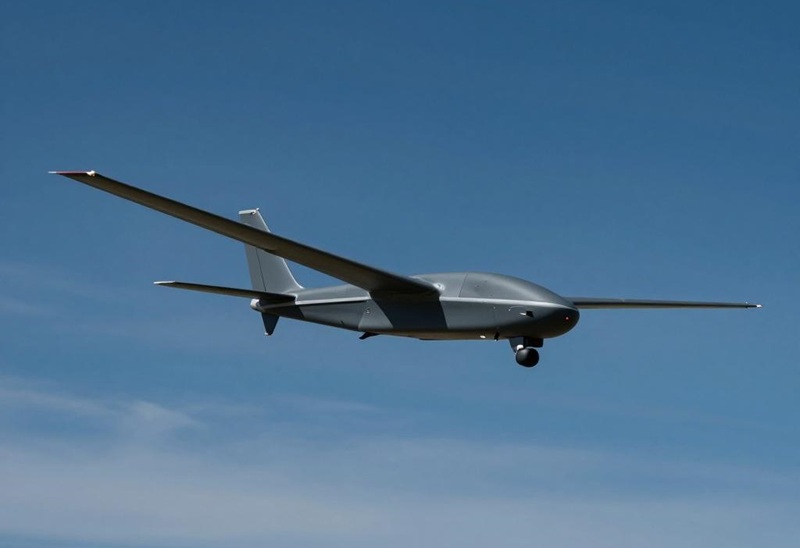

Zero signal attenuation. Protects sensitive RF equipment in harsh environments.
For non-primary-load skins and covers, yes — cheaper tooling, isotropic impact, RF-transparent. Primary spars still benefit from carbon/Al.
2 mm reliable; 1.5 mm on small parts with support ribs. Thick sections up to 12 mm without sink marks.
~30 days including aluminum mold and first article. Repeat batches ship in 18–25 days after mold approval.
Yes. Standard NDA before STEP exchange. All client designs confidential. Molds marked as client-owned.
Accepts PU, epoxy, UV topcoat directly. No gel coat needed. Any RAL/Pantone color available.
Yes. Brass or steel threaded inserts can be molded in-place. Gasket grooves, mounting tabs and snap-fits also supported.
STEP (.stp), IGES (.igs), Parasolid (.x_t), STL, and native SolidWorks/Creo files. STEP preferred.
