RIM Molded for Design Freedom, Lightweight & Impact Resistance. Complex curves, Class-A surface, MOQ from 50 pcs.
Request Quote →
Design freedom, impact survival, and paint-ready surfaces for next-gen robotics
Undercuts, ribs, bosses, integrated mounts — all molded in one shot. Wall 2–12 mm.
Ductile thermoset absorbs impact from drops and collisions. Unnotched impact 80 kJ/m².
Density 1.03 g/cm³. Reduces payload burden, extends battery life for mobile robots.
60–80% cheaper than injection. Aluminum mold in 18 days. MOQ from 50 pcs.
Paint-ready out of mold. No sink marks on complex curves. Accepts PU/epoxy/UV topcoat.
From 50-piece prototype batch to 5,000+ production runs. Consistent quality.
Real parts molded by HongFox
| Property | Value | Note |
|---|---|---|
| Material | Polydicyclopentadiene (PDCPD) | Thermoset RIM |
| Density | 1.03 g/cm³ | vs 7.8 steel |
| Tensile Strength | 51–60 MPa | GB/T 1040 |
| Flexural Modulus | 2.0–2.2 GPa | GB/T 9341 |
| Unnotched Impact | 25–80 kJ/m² | GB/T 1043 |
| HDT (1.8 MPa) | 95–110 °C | GB/T 1634 |
| Service Temp | −60 to 205 °C | stable |
| Water Absorption | <0.1% | 24h |
| Wall Thickness | 2–12 mm | min 1.5 mm w/ ribs |
| Mold Pressure | <1 MPa | Al or steel mold |
STEP/IGES/CAD input → DFM feedback in 3 days. Aluminum (prototype) or steel (production) molds.
Trimming, primer + topcoat (RAL/Pantone), insert molding, gasket grooves, threaded bushings.
100% dimensional inspection, CMM available, batch report attached per shipment.
MOQ: 50 pcs (aluminum) / 500 pcs (steel). First article 18–25 days. Batch 25–35 days FOB.

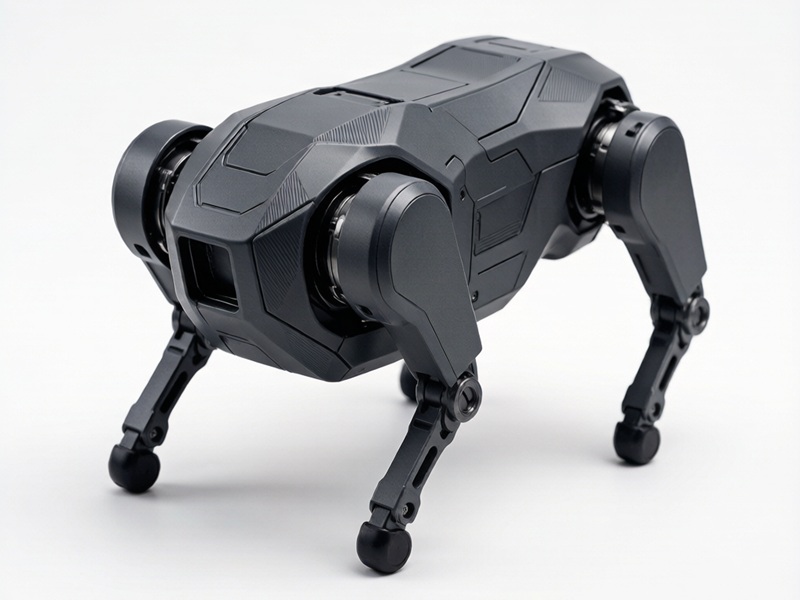

Full-body shell sets for robot dogs. Complex curves, zero sink marks, paint-ready.
Forearm covers, base housings, cable management channels. Lightweight & durable.
Chassis covers, sensor pods, bumper shells for autonomous guided vehicles.
Yes. As a ductile thermoset, PDCPD deforms and absorbs energy rather than cracking. Ideal for mobile robots that experience falls.
Leather grain, fine matte, high-gloss, soft-touch paint, EMI-shielding coating — all achievable via mold texture or post-processing.
Yes. Threaded inserts, boss structures, and mounting flanges can be molded in. Reduces secondary assembly steps.
~30 days including aluminum mold and first-article approval. CNC prototype available prior to mold commitment.
Yes. NDA available before STEP exchange. Your design files are never shared with third parties.
Up to 2 m in a single shot. For larger parts, we design split molds with seamless mating surfaces.
